Types of metrics collected by Observe

Metric type is used to drive default visualization behaviors in metric expression builders (such as Metrics Explorer or a Threshold Metrics Monitor . The metric type also affects the behavior of alignment function that are sensitive to metric types, such as rate and delta .

📘

Note

The Metric type drives default visualization behavior. If the default is not the desired behavior, you can easily switch the alignment functions in the expression builder: for instance, change avg() to rate() or change rate() to delta().

You can view the type of an ingested metrics dataset by hovering over the name in Metrics Explorer. It is useful to confirm that the type is set correctly, as false positive or negative results could occur from incorrectly typed metrics.

Supported metric types

Observe supports the gauge, cumulativeCounter, delta, and tdigest metric types:

Set the metric type

The metric type can be explicitly set with set_metric . Whenever the metric type is not explicitly set, Observe will attempt to auto-assign a metric type. This is true for all float64 metrics (gauge, cumulativeCounter and delta). Metrics of type tdigest cannot be automatically discovered by Observe. Use set_metric options(type:"tdigest"), "metric-name" to get the correct metric visualization behavior for tdigest metrics.

Metric types do not affect how metric data is collected or stored, but they are used at query time. A metric is tabulated to make a chart or test a monitored condition. This requires a time resolution, which Observe dynamically determines based on your query window size. For instance, a query window of four hours would have a resolution of one minute; while a query window of one day will have a resolution of five minutes.

The chart or table's behavior is also established by using an OPAL alignment function . This is a mathematical operation used on the values in each time resolution window to determine which value to show in the table or chart. For instance, a metric might have points at every thirty seconds, while our chart has a five minute resolution. This means each five minute window has ten measurements to evaluate. The avg() function will show the average of those ten values.

Metric types affect the run time behavior of some operations that use alignment functions .

• delta : calculates the value difference of the argument in each time bin for each group. delta may produce negative values when the argument decreases over time.
  • for gauge metrics, delta retains the default behavior. Negatives may be produced when the value is decreasing.
  • for cumulativeCounter metrics, delta will assume the values to be monotonically increasing, and treats decreasing values as counter resets. Negatives will not be produced for cumulativeCounter type metrics.
  • for delta metrics, delta will sum up the values in the time window to return the total sum. Negatives may be produced for negative input values.
• delta_monotonic : calculates the amount of difference in a column in each time bin for each group. delta_monotonic by default assumes the argument to be monotonically increasing, and treats decreasing values as counter resets.
  • for gauge and cumulativeCounter metrics, delta_monotonic retains the default behavior of assuming monotonic increases.
  • for delta metrics, delta_monotonic will sum up the values in the time window to return the total sum. Negatives may be produced for negative input values.
• deriv : calculates the average per-second derivative of the metric during each time frame
  • for gauge metrics, deriv computes the value change over the time frame, allowing negative changes, and then divides the value change with time frame size.
  • for cumulativeCounter metrics, deriv computes the value change over the time frame, treating value decreases as counter resets to prevent negative changes, and then divides it by the time frame size.
  • for delta metrics, deriv computes the value change by summing up the deltas, and then divides it by the time frame size.
• rate : calculates the average per-second rate of increase of the metric during each time frame
  • for gauge and cumulativeCounter metrics, rate computes the value increase over the time frame, assuming monotonic increase in the value and treating decreasing values as counter resets, and then divides the value increase by the time frame size.
  • for delta metrics, rate computes the value increase by sums of the deltas, and then divides it by the time frame size.

Understand aggregation

Aggregation is a computation that rearranges a time series into regular time intervals, aggregating multiple data points of a time series into one data point for each time interval.

Aggregation along the time dimension (alignment)

Metrics are usually very dense (contain lots of measurements at a high frequency). It is often useful to visualize a metric over time at more user friendly intervals. For example, disk usage metrics might have one value every 5 seconds, and we might want to plot such usage over the Black Friday week. Therefore, the ideal plotting format would be to have disk-usage summaries every 10 minutes.

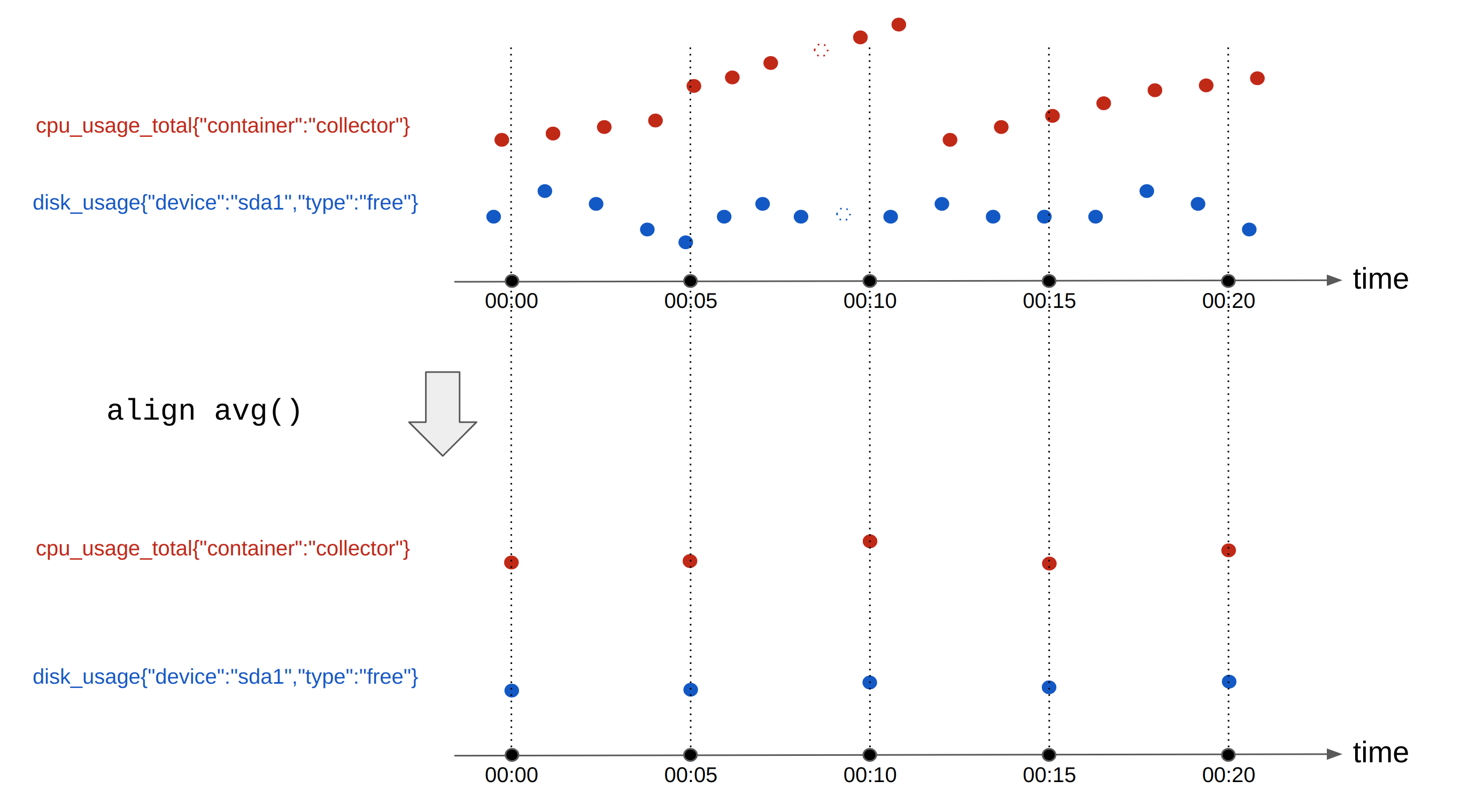

A typical alignment operation looks like this:

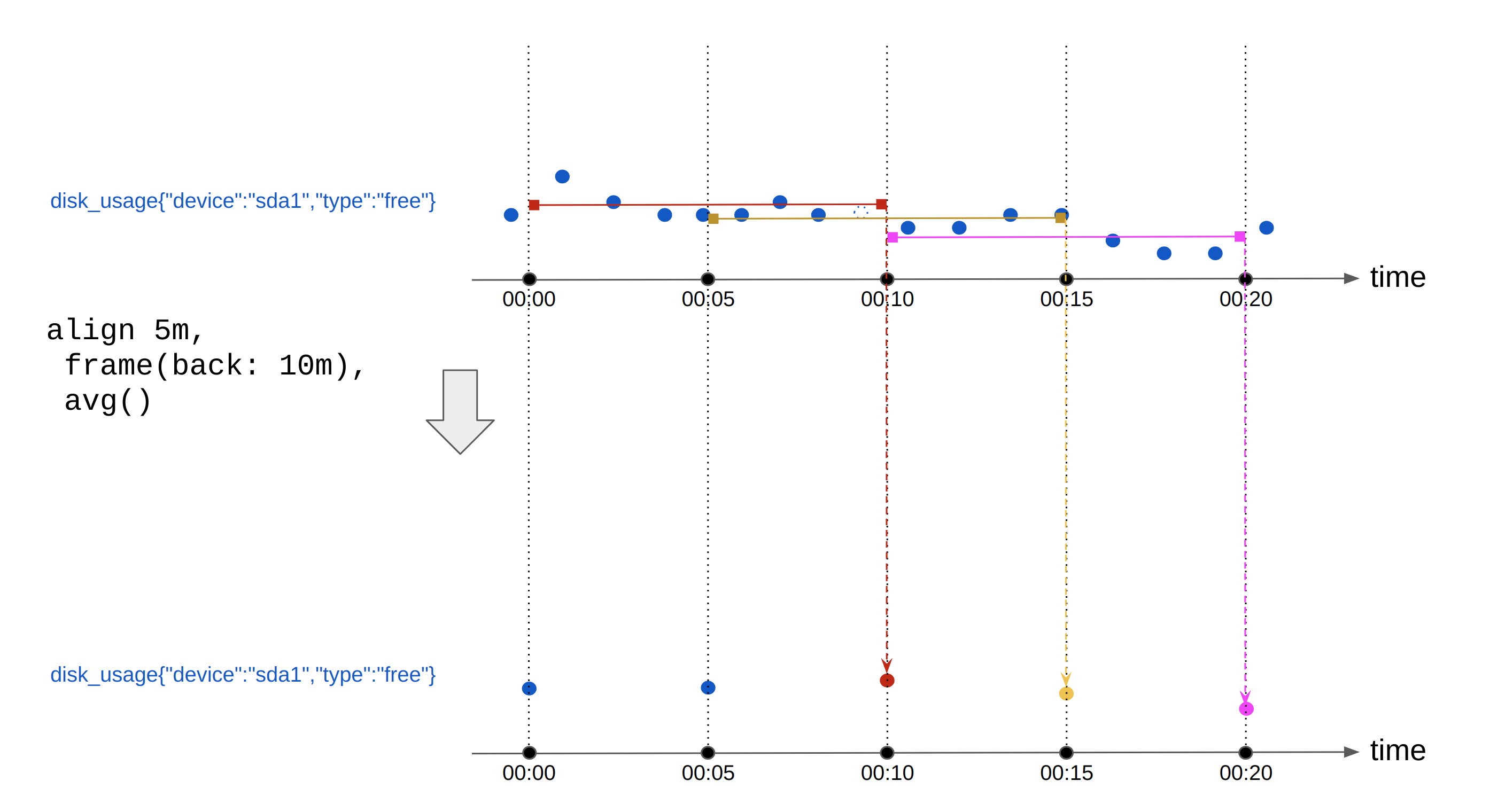

A more advanced version of alignment is sliding window alignment, also known as hopping window alignment. It is used for computations like “rolling average”. In this query, for each time-series, we generate one output point every 5 minutes, by computing the average of the input points in the prior 10 minutes. For example:

Aggregation along other dimensions

Time series can be aggregated across tags. For instance, consider the same metric disk_usage being reported for different usage types, such as free or used. You can add them up to get the total disk space.

To accomplish this, use a tag-dimension aggregation operation that aggregates multiple (already aligned) time series into one. Tag-dimension aggregation takes in regularly aligned time series, and keeps the timestamps unchanged. Aggregation across tags also requires an aggregation function to be specified.

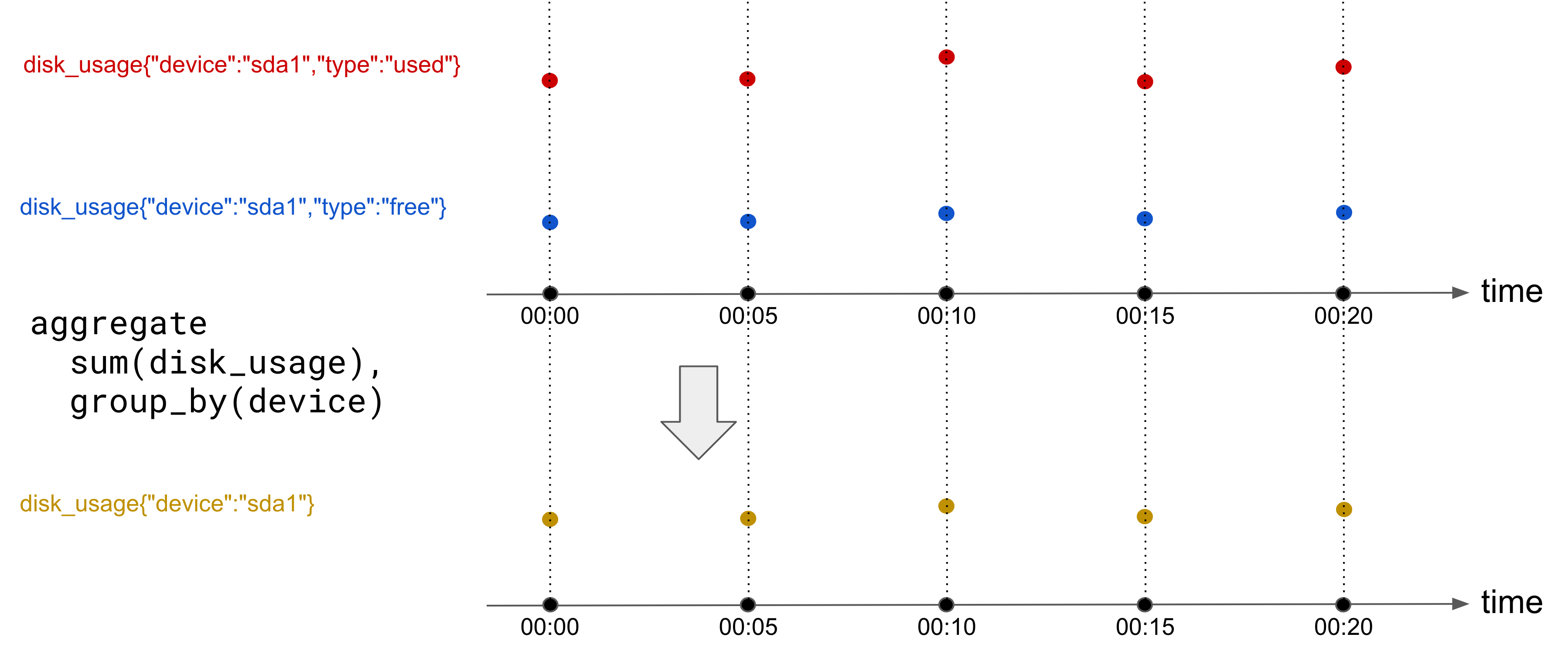

Conceptually, tag-dimension aggregation looks like this:

Additional metrics metadata

In addition to the metric type, the following metadata items can be set:

• Measurement type - describes the type of data reported in each data point. Observe supports float64 and tdigest as metric data types.
• Unit - describes the unit of measurement such as kb or kB/s.
• Description - detailed information about the metric.
• Tags - For a time series, tags better describe and differentiate the measurements. You can use them to identify individual times series during metric computations such as align and aggregate.

A Metrics Dataset contains metric data recognized by Observe. Observe optimizes the metric dataset for scalable ingestion and queries, supporting a large number of metrics. A metric dataset has the following properties:

• Each row in the dataset table describes one point in a time series.
• A metric dataset contains a string type metric value column named metric.
• Contains a float64 metric value column named value.
• Contains a valid_from column with the measurement time for each data point.
• The metric interface OPAL language designates a dataset as a metric dataset.
• All non-metric names, values, and non-valid_from columns contain metric tags.

A Metrics Dataset is always an Event Dataset and the data either inherited from an upstream Metrics Dataset or created using the OPAL interface verb. Metrics use OPAL in a worksheet to transform the raw data, add metadata, and create relationships between datasets. If you are not familiar with OPAL, please see What is OPAL?

A metric dataset contains one metric point per row - a single data point containing a timestamp, name, value, and zero or more tags. For example, the following table contains values for two metrics:

Some systems generate this by default, or you can shape other data into the correct form with OPAL.

Metric values must be either float64 or tdigest. If you need to convert numeric types to float64 see the float64 function. To create tdigest objects, use the tdigest_agg function. To combine tdigest states in any dimension, use the tdigest_combine function.

tdigest metrics behave in a slightly different way. Since their value cannot be stored in the same column as other metrics' values (because the value type is not float64), metrics datasets are allowed to have a second value column to store tdigest metrics' values and might look like this:

Note that each metric point must have either the value column or the tdigestValue column populated. The other column should be null. This is because each row in the metric dataset corresponds to one point in one time series. Points that belong to time series "disk_downtime_nanoseconds" (a metric of type tdigest) should only contain tdigest values.
